Condor XC-Mini Key Cutting Machine Forget Password (solved)

Condor XC-Mini Master Series Key Cutting Machine Forget the password ? How to do ? Please do not worry, If you forget the password , please done the following:

Step1, Please clear all the data first, and turn on the machine again, it may ask for initial password, It is ” 123456″.




Step2, Go to “Self Test” menu to calibrate it again. Height lever adjustment of the probe, cutter and clamp calibration are needed to be calibrate again, please follow the instrument to calibrate it.

Condor XC-007 vs. Condor XC MINI vs. V8/X6 Key Cutting vs. Korea MIRACLE A7

What's the difference among top 4 automotive key cutting machines in the aftermarket.

Key cutting machine comparison:

Item Number	SL257	SL252	SL260	SL273
Title	V8/X6 Key Cutting Machine	CONDOR XC-007 IKEYCUTTER	Korea MIRACLE A7	iKeycutter CONDOR XC-MINI
Update	NO	YES,Online Update	NO	YES,Online Update
Language	English	English	English	English
Car list	Acura, AlfaRomeo, Audi, BMW, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Daihatsu, Dodge, Ducati, Ferrari, Fiat, Ford, GCC, GMC, GreatWall, Holden, Honda, Hummer, Hyundai, Infiniti, Iveco, Jaguar, Jeep, Kia, Lancia, LandRover, LDV, Lexus, Lincoln, MAN, Mazda, Mercedes, Mercury, Mini, Mitsubishi, Nissan, Opel, Peugeot, Piaggio, Porsche, Proton, Renault, Rover, Saab, Scania, Seat, Skoda, Ssangyong, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo…	Same	Same	Same
Way of Key Cutting	1 Directly put key information 2 Copy key 3 Measuring key	Same	Same	Same
Applied Voltage	No limited	Need Setting, Original Voltage is 220V	No limited	No limited
If Original	Copy	Original	Copy	Original Xhorse
Which one is best ?	CONDOR XC-007 (SL252) is best one as it is most stable. CONDOR XC-MINI(SL273) is mini version of CONDOR XC-007. They all support online update. CONDOR XC-007 NO NEED connect with computer when you cut key, database is build in the main unit. Only when update you have to connect computer. While Korea MIRACLE A7(sl260), V8/X6(sl257) can connect with computer when cut key.

368A key cutting machine vs. Xhorse Condor key cutting machine

Why this 368A key cutting machine is so cheap while Condor XC Master series cutting machine is so expensive?

368A and Xhorse Condor key cutter are totally different machines. 368A key cutter is the manual control version. You need to do Calibration and cutting keys manually. While Condor key cutting machine is the automatic version. It can do Calibration and cutting keys by itself automatically.

Xhorse Condor XC MINI key cutting machine comes with build-in key database that will cut major vehicle key in the world. But the little 368A budget machine is great for cutting laser type keys.

What key can 368A key cutting machine cut?

368a key cutter can cut/duplicate both home keys and vehicle keys (multi car brands, BMW, Honda, VW etc.)

For detail what type of key can get cut, please check the user manual in the package or contact obd365.com customer service.

According to our customer’s feedback, 368A key cutting/duplicate machine is ideal for making duplicates or use together with items like SL277 or SL269-B.

SL277 New Type Car Key Combination Tool HU66

SL269-B  HU66 Manual KeyCutting Machine Support All Key Lost for VW/AUDI/Skoda/Seat

Xhorse Condor XC-MINI cut Nissan NSN14 key

Here is the instruction on cutting Nissan NSN14 key with original Xhorse Condor XC-MINI automotive key cutting machine.

There are 3 ways to make keys with Condor MINI key cutting machine. Here adapts the 3rd way: “Cut by Bitting” with an existing the original key.

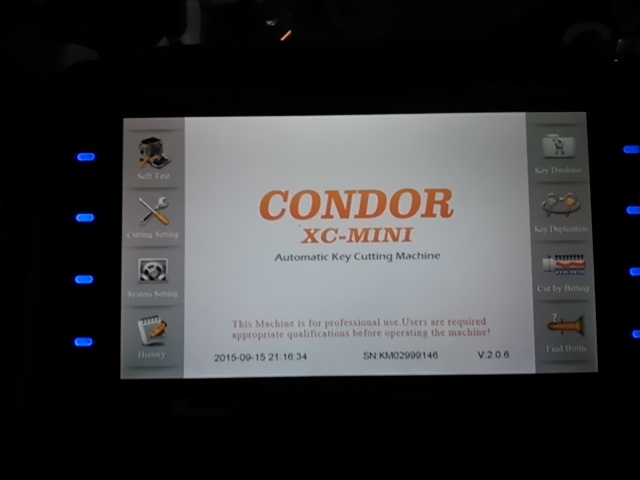

Power on the machine
Select “Cut by Bitting”

Select the Blank key “NSN14”, Press “Confirm”

Select key type and confirm

Click on “Key Decode” button. The found bitting and Clamp M1 to be used will display on the screen, Click on “Confirm”

Verify bitting and modify bitting, click “Cut”

Start key cutting

Change the key
Put a new Blank Key in the proper position of the clamp.

Press “Direct processing”

Cut key in progress

Take out the new key
Compare original key and new key. The left one is the new key, it is a little different in size, it works.

Test the new key.

Video: Volvo AT93C86 ALL KEY LOST with Xprog and Condor MINI

Condor XC-MINI key cutting machine what works and failed

Original iKeycutter Condor XC-MINI master series key cutting machine is better in the following aspects:

1.Lighter in weight. Net Weight: 18Kg Gross Weight: 22.9Kg

2.English or Chinese available same as old version condor.

3.Feed 80-220V power supply. No country/region limitation.

4.With 3 clamps (Clamp 1-3). (13th November, 2015 update) Condor XC-Mini new upgrade M2 clamp (new rotate M2 clamp have 4 sides,replace old M2 & M3 clamp)as the follow photo.



5.With built-in database which allows directly search database within the machine, no need installing on PC separately like the miracle a5 and a6, and it will support the InstaCode APP on your smartphone.

6.With double probe, do not need to remove the probe back and forth

7.Allow user to set cutting speed, faster than Korean key cutting machine (e.g Korean Miracle A7)

8.Upgrade the software on Internet, do not need to send the unit to factory or install TF card.

9.Compatible with cheap and ordinary milling tools and cutting tools, which help you save much.

10.Save cutting data in case of future query

11.Database is well illustrated with pictures which lower the key tooth selection risk

12.Support keyless entry, help locksmith find extra key tooth in door lock then ignition lock

13.3 ways optional to cut keys (key database, key duplication & cutting by bit)

For more detailed inform, please browse Condor XC Mini:

http://www.obdii365.com/upload/service/condor-xc-mini-user-manual.pdf

Xhorse Condor MINI key cutting machine success result:

1. Cut New GM, Coverlet, HU100, PSA Peugeot, Citroen VAT2 key, XC-MINI makes job easier
2. Do Toyota TOY43 all key lost, save you a lot of time
3. Cut Suzuki, Mazda (key tooth in ignition lock more than door lock) all key lost, simply by enter the key code
4. Do Hyundai, Kia, Peugeot, and Citroen all key lost, directly program keys
5. HU101 works fine, HU92 works fine.
6. HU66 OK, have to do two passes on each side to get the key to work, same with hu100.
7. Fix the problem that other key cutting machines cut domestic Honda key not accurately
8. clio 2 series with m1 clamp all is ok perfect..
9. panda mj year 2005 cut key ok ..

Xhorse Condor XC-MINI key cutting machine fail result:

1. No built-in battery
2. No solution for Renault emergency blade yet
3. Condor XC-MINI cannot decode HU83
4. Track still breaks

Remark, Xhorse Condor XC-MINI key cutting machine update goes well, more features will be released to fix the bugs and access to more functions.

How to update iKeycutter Condor XC-007 key cutting software

Original Xhorse iKeycutter Condor XC-007 master series key cutting machine software allows to be updated free online. Obdii365 here provides the update instruction.

Latest Software Version: V2.2.9
Support Language: English
Update Online

Software Download Link

How to update Condor XC-007
1. Use USB cable to connect the XC-007 with your laptop
2. Power on xc 007, and enter the main menu, use online update tool to update the sofware.
3. Click "begin to update" button then go on to update
4. Cutter will eneter "BIOS" mode, there will be the prompt of "Listening" on the screen

5. When update finish, it will go back to the main menu automatically.

Update Tips:

1. Please do not disconnect power adapter when updating.
2. If update fail, please update again.

Ikeycutter condor XC-007 update videohttps://www.youtube.com/watch?v=hXVXt3LHD2U

Volvo XC90 All key lost with Xprog M and Condor Mini

Here is the instruction on programming Volvo XC90 new key when all key lost using Xprog-M ECU programming tool and ikeycutter Condor XC-Mini key cutting machine.

Main steps:
1. Read Volvo XC90 EEPROM 93C86 via Xprog-M
2. Cut and copy XC90 new key with Condor XC-Mini

Instruction:
1. Read Volvo XC90 EEPROM 93C86 via Xprog M

1) Open Xprog M 5.0 version software
Select EEPROM 93C86.
Follow the diagram to solder and connect cables

Click “Read”
Read data completed
Save data to desktop or a certain folder

2) Open Xprog M software, and click “EEPROM”
Select EEPROM 93C86, then click “OK”.
Open and load the data file just saved
Open “File”… Click “Open”.
Click “Write”.
Select “YES”.
Write data completed

2. Cut and copy Volvo XC90 key with Condor XC-Mini

Well, here go to key copy. Select “Key Copy”

Select “VOLVO”, press Yes
Select “XC90” model, press Yes

Install M2 clamp


We are learning how to do all key lost. Select “Key learning”
Click the enter button to continue. Click “Yes”
Learning key is finished
Now we change the old key, insert a new key
Select “Direct Processing”
Condor XC-MINI key cutting machine start cutting Volvo new key
Done
Test the new cut key

http://blog.obdii365.com/2015/09/15/volvo-xc90-all-key-lost-with-xprog-m-and-condor-mini/

CONDOR XC-MINI key cutting machine cut Honda HON66

Original iKeycutter Condor XC-007 key cutting machine has been widely respected by locksmith around the word for its super quality and accuracy. The only drawback is the heavy weight. We have launched Condor mini version: XC-MINI Master Series Automatic Key Cutting Machine which made by original X-horse and built in lighter weight 25kg only.

Following is an example of cutting Honda HON66 key with IKeycutter Condor MINI Key cutting machine.

Power up the key cutting machine
Select “Key Database” from the main screen

Select vehicle manufacturer: Honda

Enter key serial number (enter the SN displayed as the picture on the program)
Select Master Key or Deputy key you want to cut

Key processing, the Condor MINI key cutting machine will display HON66 diameter, cutting depth and Snapline information, click on “Save” to save the key data

Press “Start processing” button, the MINI Condor key cutting machine will cut key automatically

How to install Xhorse Condor XC-MINI cutter & clamp?

Here are the instructions on installing Xhorse iKeycutter Condor XC-MINI key cutting machine’s cutter and clamp.

1. Install cutter

To Install the cutter

1）Put the cutter into the cutter hole and to the top limit position, ensure the section of cutter

And clamp lateral parallel

2）Turn the CUTTER LOCK SCREW clock wise, till the cutter is tightened.

2. Remove the cutter

To Remove the Cutter

1）Hold the cutter lightly, Turn the CUTTER LOCK SCREW counter clockwise

2）after the cutter loosen, remove it

3. Install Clamp

To Install the Clamp

1）Turn the LOCKING WRENCH counter clockwise on the left side to loosen.

2）Choose the clamp according to the key type, Push the clamp from the right side of the CLAMP CARRIAGE to limit position

3）Turn the LOCKING WRENCH clockwise to tighten the clamp.

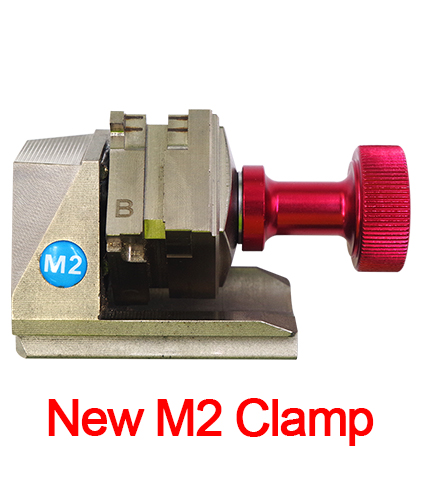

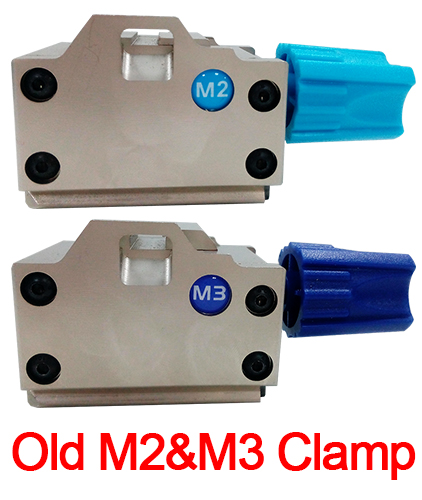

Clamp samples:
Clamp M1, Clamp M2, Clamp M3

Comparison Among Different Key Cutting Machines: http://www.obdii365.com/service/comparison-among-key-cutting-machines.html

How to replace CONDOR XC-007Key Cutting motherboard

The following part displays the step-by-step guide of how to get CONDOR XC-007 key cutting machine‘ motherboard replaced.

Step 1:
Take down the total 6 screws on each side of the head cover (follow the direction of arrow).

NOTE:
Unplug one flat cable and two button cables on the head cover. Pay special attention to the card buckle on the cover.

Step 2: Take down the 8 crows on the back of the machine follow the direction of arrows.

Step 3:
Take down the 4 screws marked arrow above. Draw out the main board together with the fixed mount.

NOTE:
Please record the connection ways of the connecting lines on the board by taking pictures before draw the main board out.

http://www.obdii365.com/wholesale/ikeycutter-condor-xc-mini-master-series-automatic-key-cutting-machine.html

Ikeycutter CONDOR XC-007 what works and does not work

“if you’re going to get a Chinese one at least go for the ikeycutter/condor as the quality is meant to be a lot better and that way you might get updates”- from a digital-kaos forum poster, this means ikeycutter/condor XC-007 has captured some users heart.

Since ikeycutter/condor is well-received by an increasing number of users, I think it is necessary to collect some real users using experience and include what CONDOR XC-007 works and does not work.

CONDOR XC-007 what does work?
1) Built-in database, easy to check the data, no need to connect with the computer, only when update it needs to connect laptop.
2) Double pin structure, no need to disassemble guiding pin.
3) The cutting speed is available to choose.
4) Update is easy online, no need to return back to the factory or install memory card.
5) The cutter and consumables is cheaper, most locksmiths can afford to it.
6) It is faster to add data and update for the Chinese cars, so it is more suitable for Chinese locksmith.
7) Can save cutting record, which is convenient for operation and check.
8) The database is built with diagram and words, which clearly show which cutting type to choose.
9) Able to help locksmith find out the extra cuttings in the ignition locks than that in the car door lock.
10) Support making key even all key lost, refer this link:
http://www.obdii365.com/service/technical-service-for-ikeycutter-condor-xc-007-2353.html

CONDOR XC-007 what does not work?
1) Too heavy, 36KG ( 79.37LB ) weight,  2 times as weight as MIRACLE-A7 and Automated V8/X6, it will cost more shipping fee, by the way OBDII365 is free shipping.
2) It has English version; the only fault so far is it is the sound of the machine is loud.

Relate article: 79US$ 368A Key Cutting Machine for BMW/HONDA/VW

Original Xhorse IKEYCUTTER CONDOR XC-007 Master Series Key Cutting Machine

Xhorse Tech makes good tools and is known for the key cutting machine. IKEYCUTTER CONDOR XC-007 Master Series (English version) is a powerful key cutting machine comes with the most advanced software and precised mechanism, easy to operate.

1. Latest Version: V2.2.9

2. Power-On Password: 123456

Condor XC-007 Master Series Overview

Condor XC 007 User Manual

iKeycutter Condor XC-007 Features

1. Touch-up screen

All features of the XC-007 Key cutting are covered with the use of touch-up screen or keys that are situated convenienty on the side of the screen(you can use them during some heavy works, if you do not want to scratch or smudge screen)

Now software version has updated to V2.2.9, during the update pls do not disconnect the power, if update failure, can retry

2. Internal software

Software shows key cuts on the touch-up LCD screen, allows to calculate cuts when we need it(in case of broken keys,etc.) Software is fully upgradable through pc of internet.

3. High accurancy

Tracer and cutter are mounted on the same tower to increasing the machine accurancy and lower the possiblity of any malfunction during process of reading or cutting. Calibration of cutter and tracer is very easy and takes just a few moments.

4. Simple in use

Universal clamp allows you to mount keys in easy and certain way, so your work can be done in a way you want.

5. Change Cutter Easily.

When you need new cutter, simply press, wait for a click, turn knob and then you can take out an old cutter and put a new one into the machine and keep working. No need any special tools and a long break in your working time.

6. Specially designed tray

Located on the side of the machine, the specially designed tray allows you to keep your cutters and tracers in one place and just in your reach. So you can pick they up easily.

7. LED illumination

Dring process or designing and producing, our main focus was lower power requirement and low weight of the machine. So we used an LED illumination to achieve our goals.

8. All connectors that are used by XC-007 are conveniently located on the back of the machine, so they are protected  from swarf during use.

---

CONDOR XC-007 key cutting machine Support Vehicle  List:

Acura, AlfaRomeo, Audi, BMW, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Daihatsu, Dodge, Ducati, Ferrari, Fiat, Ford, GCC, GMC, GreatWall, Holden, Honda, Hummer, Hyundai, Infiniti, Iveco, Jaguar, Jeep, Kia, Lancia, LandRover, LDV, Lexus, Lincoln, MAN, Mazda, Mercedes, Mercury, Mini, Mitsubishi, Nissan, Opel, Peugeot, Piaggio, Porsche, Proton, Renault, Rover, Saab, Scania, Seat, Skoda, Ssangyong, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo

Condor XC 007 Pictures:
