Xhorse Dolphin XP005 Cut Hyundai HY22 All Key Lost

 To cut a Hyundai Sonata HY22 with Xhorse Key Cutting Machine when all keys lost, you’ll need to get its key code at first. After successfully reading out bittings with LISHI tool, I’ve got the key code K1635. Now, it’s up to Xhorse to do the rest!



This time I’m going to use Xhorse Dolphin XP005 to finish the job. It’s surely workable if you have a newer Dolphin 2 as well.

Procedure

All key lost >> Hyundai >> Enter key code: K1635 >> HY22

It tells to use M5 clamp on B side, tip align position line 2.

Put a key blank to fix on M5 clamp.

Cut key >> Cut

Dolphin XP005 will start cutting directly…

Wait processing until 100%.



After one-side cutting was finished, turn over the key to cut the other side.

Cut key >> Cut

All we have to do is just waiting and let it go.



Once cutting finished, take out the key for a test.

It actually works and works perfectly.

Done.

www.vvdishop.com

How to Solve Xhorse Condor II Error Code 3?

 Problem:

I had a problem cutting Suzuki HU133R key blank. My Xhorse Condor II key cutting machine gave me error code 3. Not detected cutter. Any advice?

Solution:

First of all, do an Electrical Conductivity test.

In Condor II main menu, go to Settings->Machine Test-> Electrical Conductivity Measurement->Start Test

If there is a problem with the conductivity test, do following:

https://www.vvdishop.com/service/xhorse-condor-ii-conductivity-test.html

Xhorse Dolphin XP005 M5 Clamp Cut Toyota Prius TOY48 Key

Xhorse released an update on the app that users can now use the M5 Clamp, which is a combination of M1 and M2 clamp on the Dolphin XP005. So I went on www.vvdishop.com and for about $249 dollars. I got a clamp. I’m gonna unbox it here.



I’ll put the M5 clamp on the machine to try it out. I do have to update my firmware and Xhorse app for this function. In terms of M5 clamp type, vacuum seal it is to keep it fresh, I guess.

The cool thing about M5 clamp is that I don’t have to keep swapping them. Just open it all the way up and rotate it over to the B side, which is like the M2 clamp. You don’t need to swap the clamp back, which is really nice if you ever doing a lot of keys in one place.



So I’m going to go ahead and loosen out slide off the M1 clamp. Do a little house cleaning , then install the M5 clamp. Crank it down, power on the machine. To be sure, M5 clamp doesn’t need a calibration, but it needs to be set up.



Open app, connect to Xhorse Dolphin:

Device information >> Cutting setting >> Clamp >> M5 >> Set parameters

Setting parameter success.

Following I’m going to cut a Toyota Prius TOY48 key for a test.

All keys lost >> Toyota >> Inter key code: 46081 >> TOY48

It says to use M5 clamp B side, tip align line 2.

I have a Dolphin 2 as well. The knob is actually different. But as long as it works, it doesn’t really matter. After tightening the key blank, here we go.

OK >> Cut key >> Cut

The Dolphin starts cutting…

After finishing, flop it around to cut the second side.



Key cutting is now completed.

Take out the key to test if it works.

Alright, key goes in, and it turns perfectly. There’s no calibration here but M5 clamp can actually index the key and cut by code well.



This is the M5 clamp on Xhorse Dolphin XP005 key cutting test review.

www.vvdishop.com

How to Solve Xhorse Dolphin XP005 Error Code 42

 Problem:

I have a new xhorse dolphin xp005l, and it is already calibrated, when I send the order to cut, it reaches 1%, the red light comes on and this error code 42 message appears, I already tried another cutter and tried.

Solution:
First make sure the work area is clear and clean. No shavings on the clamp at all. Next do the ‘Height Level Adjustment’. After performing that, try cutting your key.

If you did a firmware update, you have to perform it AGAIN. — If you truly did the Height level adjustment, and it’s not seeing the probe & cutter at the same height, then it might need sent in for service.



Xhorse Dolphin XP005/XP005L Height Level Adjustment
When should you do it?
•after a firmware update
•after you brake a probe or cutter
•whenever you want to change the cutter size
It’s very simple!
•Click Device Info at the bottom
•then click “Height Level Adjustment”
•Next you will want to READ the onscreen directions and follow them exactly.

Feedback:

I lowered the cutter a bit to the level of the probe and the machine cut a hon66.  if you did the height level adjustment, that’s what it has you do!

https://www.vvdishop.com/service/xhorse-dolphin-error-code-42-solution.html

Cut Toyota 80K Series Key by Xhorse Dolphin XP005

 Today I’m going to show how to cut the Toyota and Lexus 80K series key by using Xhorse Dolphin XP005 + VVDI Key Tool Max. To cut the Toyota XM Smart Key, we’ll use a special adapter that Xhorse gives you for these keys.



As Xhorse does not tell when or how to use the key adapter, following I’ll show you.

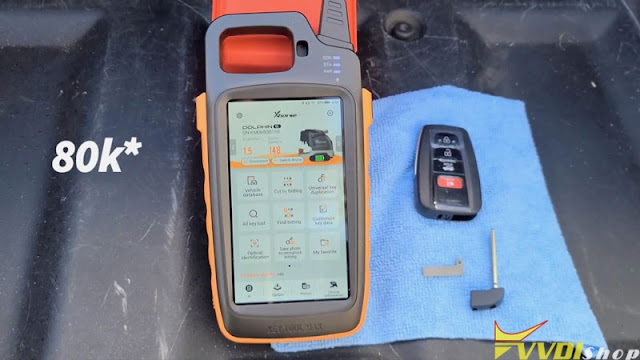

Connect Key Tool Max to key cutting machine via Bluetooth.

All key lost >> Toyota >> Enter key code: 84748

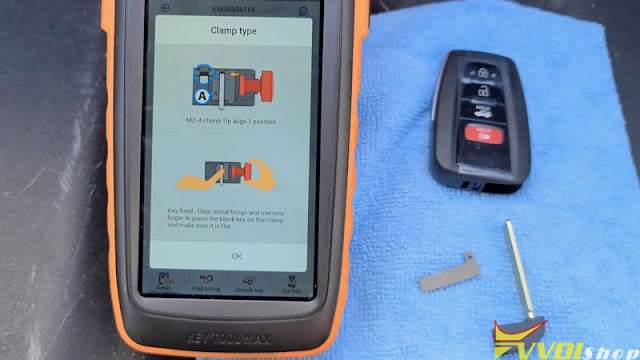

It’s going to tell us to use the M2-A clamp, and tip align 1 position.

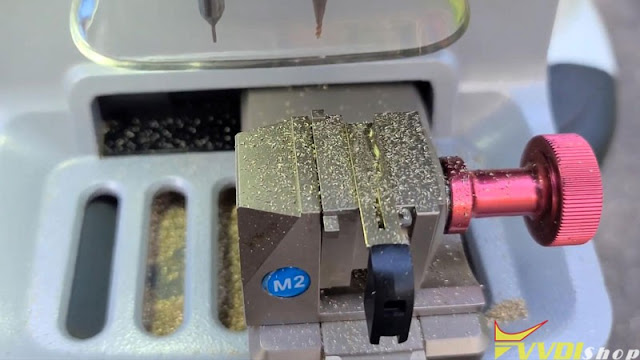

Take the key adapter to sit at M2 clamp. As we can see, the adapter is not as long as the key.

Put the key blank onto the adapter, tip align the first line and tighten it.

Now the key is able to get cut.

So press “Cut key” on Key Tool Max.



Dolphin XP005 will automatically start working.

Just wait…

Perfectly completed.



Hope this can help someone who met all keys lost scenario.
