How to Solve Xhorse Dolphin XP005 Error 02233?

 Problem:

I got the error 86 on my xhorse dolphin xp005 key cutter last month. I have it checked with my dealer and got the main board replaced. Now it has a new error 02233. What should I do?

Solution:

Delete the original Xhorse app on your phone.

Or download this apk on another mobile phone. Do not update apk after installation.

http://dl.xhorse.com/tmp/xhorse_goo_sign.apk



Open this app, bind device, go to Device Information->Parameter List

There you can close the error code.



www.vvdishop.com

How to Solve Dolphin XP005 Calibration Error 35?

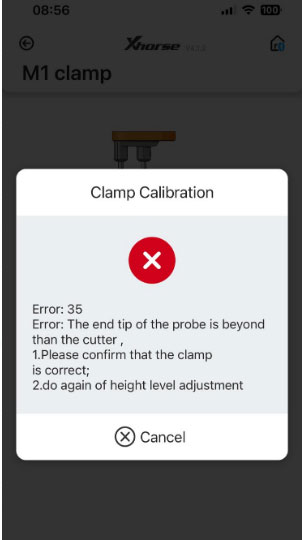

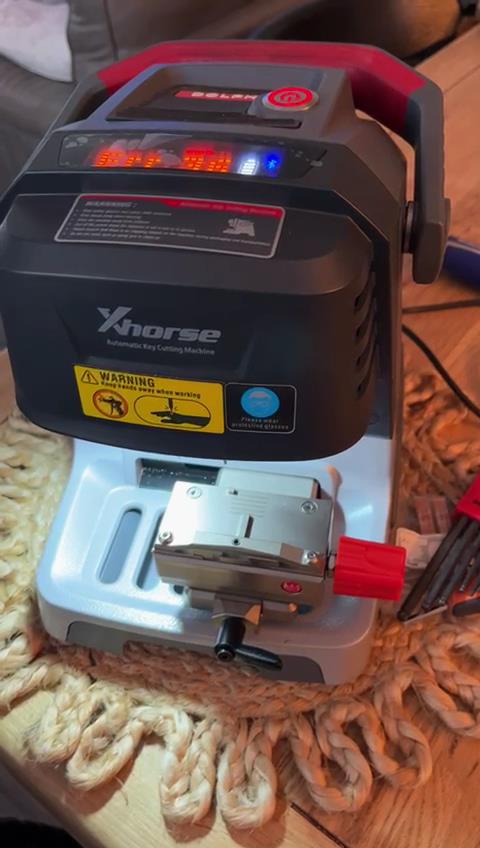

 Problem: The Xhorse Dolphin XP005 Key Cutting Machine can’t work normally, it gave a clamp calibration “Error: 35” message.



“Error: The end tip of the probe is beyond the cutter.

1. Please confirm that the clamp is correct;
2. Do again of height level adjustment.”



What’s the matter? Please help.

Solution

1. Pull the probe down a little bit;
2. Follow the prompt to do again height level adjustment.



Thanks to www.vvdishop.com, problem has finally solved!

Xhorse Dolphin 2 Unable to Remove M5 Clamp Solution

 Problem: My Xhorse Dolphin 2 is unable to remove M5 Clamp even when twisting the right red button for many times.



What’s wrong, any suggestions?

Solution

1. Rotate the black button to remove M5 clamp;
2. The reason why caused the issue is because M5 clamp is slipping and cannot hold the key properly. Try to tighten the clamp by turning to the opposite side of screw, and knock it hardly on the ground. This can fix the problem.



Technical Support

www.vvdishop.com

Xhorse Dolphin XP005 V127 Fixed VA2EH2 Issue

 Xhorse Dolphin XP005 and XP005L released new database version V127 on Oct. 18th. 2023.

There is an update for that blade fixed. This version fixed Renault VA2EH2 key cutting issue.

Feedback:

I had the issue last week with same blade.

After updating it to latest software it was all fixed.





FYI:

You can use universal key duplication option if you have a working key.

www.vvdishop.com

Xhorse Dolphin II + Key Reader Cut Audi A6 HU66 Key

 I’m going to show how to use Xhorse Dolphin XP005L + Key Reader to cut a new Audi A6 HU66 key. Firstly you should have a working key for reading key bitting codes. Let’s get to start.



Step1. Read Bitting Codes

1. Turn on Dolphin II, it’ll power-on self-test.
2. Use Xhorse app for Bluetooth connection.
3. Insert the key into XDKR00GL Key Reader for optical reading.



Optical identification >> Audi >> A6 >> HU66 >> OK >> Identification >> Identification

Identification successful.

Key biting codes: 11334242

Press “To cut” to complete.

Step2. Cut Key

*It’s suggested to do height calibration before cutting.

Device information >> Height calibration >> Start

Put the key to be cut on M5 clamp side B position 0, lock the knob.

Close the protective cover to prevent the cutting iron filings from flying around.

Cutting key >> Continue

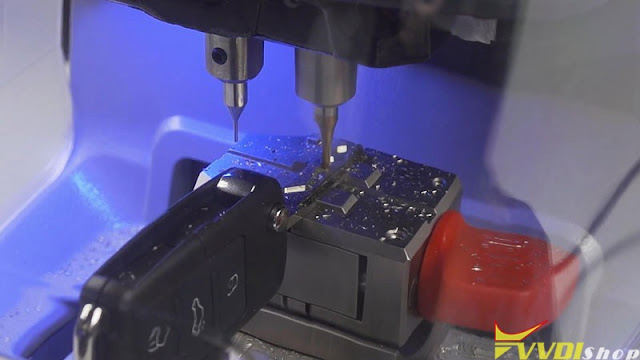

Dolphin XP005L machine starts cutting…

Clean up debris after cutting completed.

Turn the key over and continue to cut the other side.

Continue cutting…

Wait until finished.



Take out the key to check cutting effect, it’s same as the working key.

It can successfully open lock as well.

Well done.

www.vvdishop.com

Xhorse Dolphin XP005 Fixed VA2 VA6 Bugs

 Some users reported that Xhorse Dolphin XP005/XP005L had bugs when cutting VA2/VA6 key blanks in the last update.

The problem was solved by the last update. V1.7.4 came out and fix the va6 issue.
Update the firmware to 1.7.4 or Dolphin machine and update also the Xhorse app.



Feedback:

Just cut a VA6 I decoded the key Q-H then cut as normal.
so I tried again with the same key but this time I noticed a new item in the menu just before you click cut (See Photo)

I ticked this and cut the key again (you have to tick it on both cuts)

Put it in the lock and it worked.
on the 2nd cut it took a fraction more off one side and the back end of the key

But it worked in the lock.

How to Cut KW1 Smart Lock with Xhorse Condor II?

 Question: Is it possible to cut a Kiwiset KW1 smart lock try-out-set with xhorse Condor XC-Mini Plus II?

I’m trying to find a solution to cut residential keys after decoding smart locks.



Solution:

Yes, Need to download key file info from share market.

Menu path:

Customize key data->Share market->I want to download.

How to Fix Xhorse Dolphin XP005L Bluetooth Constantly Disconnect?

 Problem:

I connect my Xhorse Dolphin XP005L to a phone via Bluetooth, it keeps disconnecting by itself. after that i connect back then it immediately disconnects. Firmware and database are up to date.

I also use the machine with key tool plus. he has disconnected with it a total of 1 time so far. it is much rarer there. Any solution?

Solution:

Update firmware and database to latest version, then connect with Xhorse App.

If all versions are up to date, but Bluetooth still constantly disconnecting, the problem would be the WiFi module on the mainboard.

Contact us to verify if the WiFi module need to be replaced. We will send you WiFi module for replacement.

Remove the screen and replace WiFi module (on the same control board)

https://www.vvdishop.com/service/replace-xhorse-dolphin-xp005l-screen.html

How to Replace Xhorse Condor Mini Plus CR1220 Battery?

 Problem:

My Xhorse Condor xc-mini plus machine doesn’t record but time and date, would it have a battery inside or something? I’ve already dismantled where it gave here and I haven’t found it?

Solution:

Replace the button battery (CR1220) on the motherboard.



Procedure:

Step 1. Remove screws on the screen and the back cover, and take them away.

Step 2. The motherboard on the left is tightened by 3 hexagon screws, which requires an extended handle or a long-handled hexagon wrench to take it out.

Step 3. When you take out the motherboard, you’ll see the button battery (CR1220).

Step 4. Replace the battery and restore everything.

Step 5. Turn on the machine, adjust the time setting, and everything should be fine.

BTW, such procedures (that require taking the machine apart) Under Our Guidance won’t affect its warranty.

https://www.vvdishop.com/service/xhorse-condor-xc-mini-plus-display-wrong-time-solution.html

How to Solve Xhorse Dolphin XP005 Cannot Charge Battery?

 Problem:

One of our customers reported that his xhorse dolphin xp005 key cutting machine cannot charge the battery.

VVDISHOP.COM Solution:

Charge the battery for at least two hours.

Then do a battery test as following:





Xhorse Dolphin XP005 Battery Test Guide (Check Battery Good or Not)

When testing the battery, remember to short-circuit the middle of the battery.

Send a battery test video to vvdishop.com engineer. We will see if battery needs to be replaced.
