Tips to Cut 2021 Toyota TOY51 Key with Xhorse Dolphin XP005

 Question:

How do you duplicate emergency key for 2021 Toyota Highlander TOY51 SINGLE SIDE with the newer version of Xhorse Dolphin XP005 with M5 clamp? Probe does not detect key, clamp seems too low.



Here is the clue:

You cut it on the wrong side.

You need to use the correct profile use the TOY40 one sided blade for emergency blade and it will work.

You cut the key on side A, not side B, the spacer is for condor, not dolphin. The double sided version is cut on side B.

You do not need a spacer with the dolphin, that’s for the Xhorse condor.

Select the correct key and it cuts perfectly every single time, no need to do anything special.



Go under TOY40 emergency key. New dolphin doesn’t use spacer.

www.vvdishop.com

Xhorse Dolphin XP008 Makes Weird Sound Solution

 One of our customers reported that his Xhorse Dolphin XP008 manual key cutting machine sounds weird when duplicating key.



Here is the possible solution from Xhorse engineer.

1.Unscrew these two screws and take off the belt.

2. Unscrew 5 screws on the shell

3. Unscrew the top screw in this hole.

4. Unscrew the cutter head and you can take out the bearing

5. You can apply some glue on these two bearings, it must be a thin layer.

Install machine again, then try to cut key.

www.vvdishop.com

Xhorse Condor II or Dolphin II for Household Keys?

 Entry question:

Looking to buy my first horse key cutting machine mainly for auto and household key duplication. Should I go for the Dolphin XP005L or the Condor II? Any recommendations?



They have the same car key database.

As for household key cutting, xhorse dolphin I and dolphin II will not cut house key by bitting. You need to write the bitting yourself.

Dolphin will duplicate only.

Dolphin will cut household keys via Universal Key Duplication only if you have a working key.

Condor Xc mini plus 2 will cut them by code. It is the only xhorse machine has the option to cut house keys by code.

The Condor II machine allows you to use custom bitting directly on the machine. You also need the M4 clamp. Once you learn to create and use custom bitting, the machine will cut extremely accurately, usually within a thousandth of an inch.

What household keys does it in the database?

It has a lot of key types in the 100s for house keys.
Kwikset KW1, KW10, Schlage SC1, SC4, & Y1 etc.

You can check household key types in the menu.

Generally, Dolphin is a better option for van. If you want to go with Condor you can buy a battery/converter kit that comes with 12v van and wall outlet.

I like my condor mini plus ii with the battery conversion. I charge it from the 12v outlet and it lasts for 20-30 keys depending. I also have the battery powered condor duplicator that also charges from the 12v car port. The Condor ii works great, the cover protects from flying debris, and it is controllable using the screen or key tool max or cellphone app.

Xhorse Condor XC-002 Pro Cut HON66 Key

 This is a tutorial on how to cut a HON66 key with Xhorse Condor XC-002 PRO. Always remember the key cutting machine was well-calibrated(Height Level Adjustment) before working.



Height Level Adjustment

Method 1.

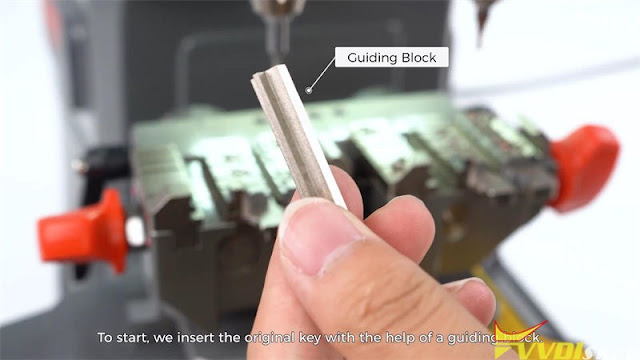

• Insert the original key with the help of a guiding block. Use a shim to make sure the key is well aligned.
• Insert the key blank to the right for ready.
• Press down the main handle and check the indicator light. Follow the direction of the light and rotate the micro-adjust knob until the middle light turns green.

Method 2.

If you don’t have a shim momentarily, follow the method as below.

• We can also use probes of the same specification on both sides to ensure the accuracy.
• Press down the main handle and rotate the handle to lock it. Utilize the probe and cutter of Condor XC-002 PRO machine for key alignment.
• Replace the cutter back and adjust the micro-adjust knob until the middle light turns green.



Height level adjustment was finished.

Preparation

Before cutting, take a look at the clamp. There are 3 marked positions at the bottom of the clamp: A, B and C.

1. Slide in the clamp and make one triangle directs to the line depending on your need.
2. Turn on the power switch of the cutter, adjust the speed control knob to a suitable speed.

Cut HON66 Key

Now let’s start duplicating the key.

1. Press down the main handle and start cutting the first side.
2. After finishing, turn off the power switch. Clean up the clamp and flip the key.
3. Similarly align the key and finish calibration of the other side.
4. Turn on switch to cut the other side of key.



*Please remember to turn off the power when completed.



Now the new HON66 key cutting has been finished.
