How to Cut SIP22 Key via Xhorse Condor XC-Mini Plus?

 Today I’m gonna to demonstrate how to copy a SIP22 key using with Xhorse Condor XC-Mini Plus key cutting machine.



Prepare an original key, and a key blank.

Install the original key on M2 clamp, fix it flat.



Press on Condor XC-Mini Plus tablet screen,

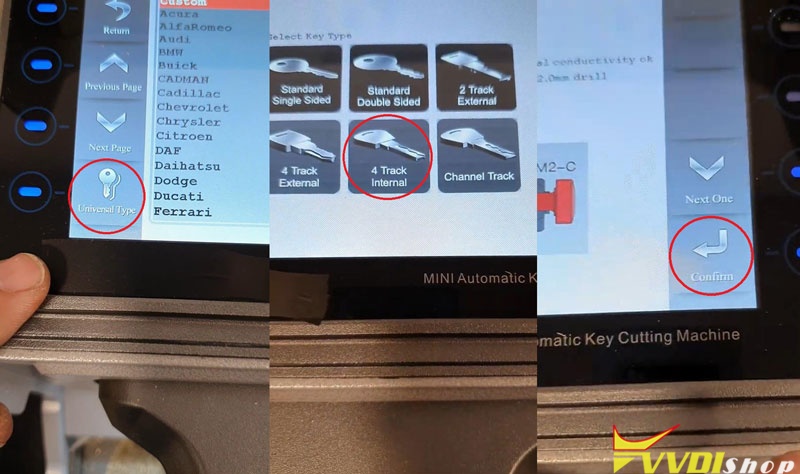

Key duplication >> Universal type >> 4 track internal >> Confirm >> Key decode



Condor mini plus starts decoding the key…



Change the key blank to install on clamp when decoding finished.

Press “Cut” on tablet screen.



The machine starts cutting…



Key duplication has done!

As you can see, they are same.

It is quite easy and fast to perform Xhorse Condor Mini Plus Automatic Machine to complete this job.

https://www.vvdishop.com/

Xhorse Dolphin + VVDI2 Make Audi TT HU66 AKL

 Having been decode the HU66 bitting codes, today I wanna to use Xhorse Dolphin XP005 & VVDI2 to make 2 keys for Audi TT 1999 when all key lost.



Dolphin XP005 Cut Keys

Connect with XP005 machine in Xhorse app, press

Cut by bitting >> HU66 >> OK

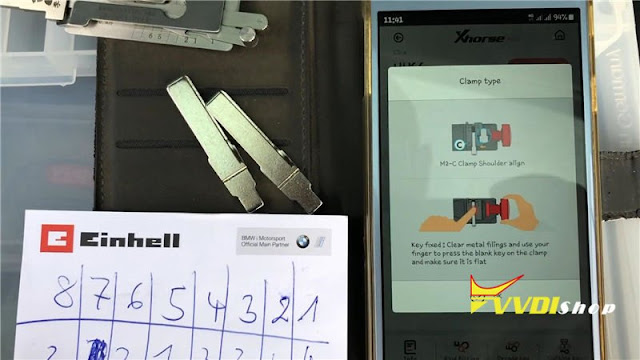

Install M2-C clamp, fix one key blank flat on it.

Input key bitting codes, press

Cutting key >> Continue



Xhorse Dolphin machine stats cutting…

Repeat same operation for 2 key blanks, wait until finishing.

Install keys with a remote shell , let’s go to next step.



Xhorse VVDI2 Program Keys

Open VVDI2 software, click

Special Function >> K-Line Instrument /Immobox



Select type: Instrument Cluster – Magneti Mareli – Direct 2000-



Click “Read EEPROM”.



Start transfer/receive data…



Data was read out.

Magneti Marelli (without verify). KM start at address: 009C

The kilometers are right, so the PIN is 09551.

Go to “Key learn”.



Select vehicle: VAG KWP1281 Immobilizer – KWP1281

Input Key Count and Login(PIN), click “Learn”.



Please switch ignition OFF for 5s, then switch to ON. Click “OK”.



Test real value to channel…



Switch off ignition. Insert every key to ignition and switch on at least 2s. Click “OK”.

Completed!



Let me test the keys finally, alright, both can work well.

Key programming has done!



This is using Dolphin XP005 key cutting machine + VVDI2 programmer to make 2 keys for Audi TT 1999 all key lost successfully!

https://www.vvdishop.com/

http://blog.vvdishop.com/xhorse-dolphin-xp005-vvdi2-make-audi-tt-hu66-keys-all-key-lost/

Dolphin XP005 Cut Volvo S40 HU56 AKL by Code

 Hey everyone, today I got a door lock from a 2000 Volvo S40, so I’m gonna use the Xhorse Dolphin XP005 machine to cut a HU56 key for it.



I did decode it to get the bitting codes:21324343, and its lock code is DH0800.



I will use the Xhorse Key Tool Max to control it, you can also use Xhorse app on a smart phone instead.



Connect it with Dolphin XP-005 to start:

All key lost >> Volvo >> Input lock code: DH0800

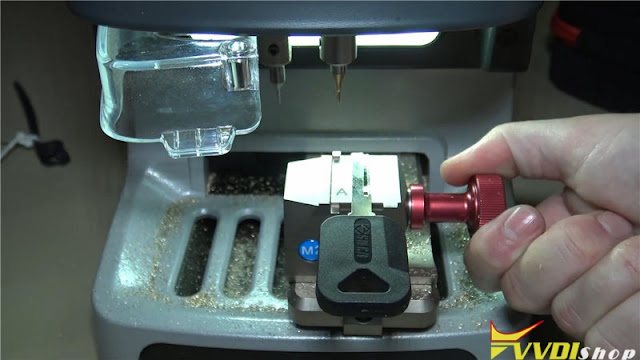

Install M2-A clamp, and fix HU56 key blank as prompts, press “OK”.



Just to verify the bitting codes are all right, press

Cutting key >> Continue

Xhorse Dolphin will start cutting automatically…



Wait until the machine stopped, take out the key to cut the other side.

Go back to press on Key Tool Max,

Cutting key >> Continue



Dolphin XP005 will go on cutting…



Take out the key when machine was completed, it can open the lock flawless!



Done!



This is using Dolphin XP005 Key Cutting Machine to cut a HU56 door lock key for 2000 Volvo S40 all key lost successfully!
