Xhorse Dolphin XP007 Remove Case and Replace Belt

 If you can hear the sound of the motor but Xhorse dolphin xp007 key cutting machine not working properly after turning on the power, you may need to disassemble the plastic case to check if the belt is broken and replace it if necessary.

Check the original box the machine came in. There is a spare replacement.



How to disassemble the dolphin xp007 plastic case?

How to disassemble the dolphin xp-007 motor bracket?

There are 2 ways to disassemble Xhorse Dolphin XP007 shell,

Method 1:

Method 2:

How to Replace the xhorse dolphin xp-007 belt?

https://youtu.be/gMW7jQrMdEo

https://www.vvdishop.com/service/replace-xhorse-dolphin-xp007-belt.html

Xhorse Dolphin II Duplicate HONDA HON66 Key

 Here we going to show how to duplicate a map wave key Honda HON66 with Xhorse Dolphin II XP005L key cutting machine.

Tap on Dolphin touch screen:

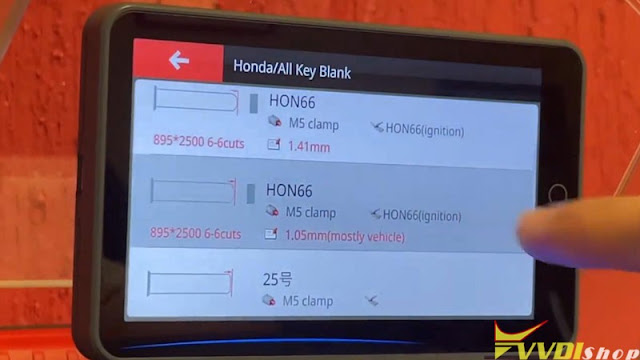

Vehicle database >> Honda >> All key blank >> HON66

It tells to use the M5 clamp side A, tip align 5^th position.

Place the original key according to tips.

Let’s continue.

OK >> Decode key

Xhorse Dolphin 2 is going to start reading the bittings…

Decode key complete.



Once we have the bitting codes, remove the key to insert a new new one to cut.

Adjust it well to tip align 5^th.

Cut key >> Cut

Dolphin 2 machine will start cutting…

Once finished, turn it over to cut the other side.

Simple operation are all the same.

Cutting key completed.

Remove the new key to insert lock for a test.

It turns perfectly and it’s same smooth as the original one.

HON66 key duplication has done.

Xhorse Dolphin II Duplicate 2007 VW Jetta HU66 Key

 This is a quick demo on using Xhorse Dolphin II to copy a 2007 VW Jetta key blade. It’s a HU66 blade. As already prepared a new key blank here, let’s get to start.

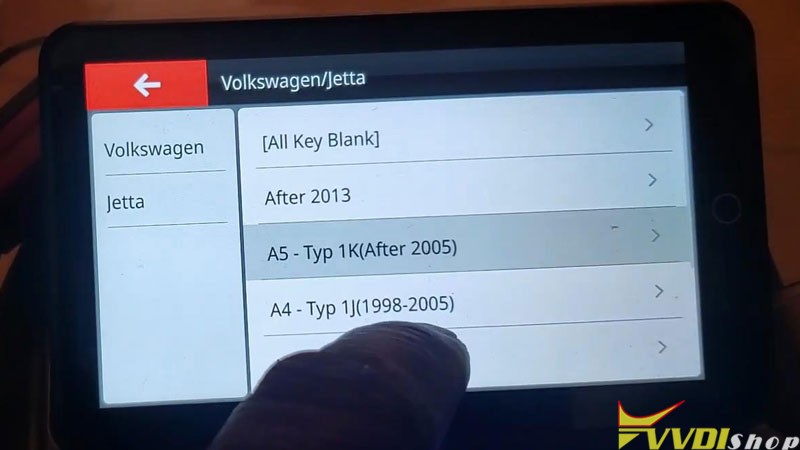

Vehicle database >> Volkswagen >> Jetta >> A5-Typ 1K(After 2005)



Follow the tips to install M5 clamp, and rotate to side B.

Tighten the key shoulder align on clamp.

Press “OK”.

In general, I should decode the working key first.

But key bitting codes have been shown on Dolphin 2 screen: 12133422

It’s same as the working key.

So I’ll go to cut key directly.

Cut key >> Cut

Dolphin XP005L machine starts working.

Lay down the cover and wait for processing…

100%, cutting key completed.

Alright, I’m gonna brush off scraps and see how it did.

That’s kind of amazing, it looks pretty good.

Compare to the original key, they are same.



This is only one-side cutting, second side cutting can follow the same way. It’s smart & easy to cut 2007 VW Jetta key with Xhorse Key Cutting Machine. I don’t even have to decode.

Xhorse Condor and Dolphin V101 Adds Renault Emergency Keys

 Xhorse Condor Mini Plus and Dolphin XP005 key cutting machines released a new update V101 on April 18th, 2022. Renault emergency keys are no longer a problem, they were added in update 101. This update was good News!

Add Suzuki motorcycle brand
Add Toyota Corolla new type key data
Add SX9 double sided type to standard clamp
Add Renault Megane, Laguna emergency key for A1/M5 clamp
Add BMW HU100R for M5 clamp side A
Fix Citroen all keys lost query issue
Fix Condor machine cutting issue by instacodelive App

Xhorse Dolphin XP007 Remove Broken Tracing Probe

 Anyone have any idea how to remove the xhorse dolphin xp007 broken tracing probe that stays stuck in its place?

Solution:

These are all possible solutions from Xhorse Dolphin users:

• You take the screw out and make a stack and take it out.
• Warm the holder and cool the tip with the set screw removed try a spring-loaded center punch in the hole for the set screw and lever it out.
•  take the whole cylinder out and then tap it thru the top
• Put a pin on top of it with a fine drill and you can remove it with a thin-tiped staple by hitting the stove.
• Strip tracer tower out, and punch it from the rear side. Won’t be a blind hole, worst case, when it’s out, file it flat, drill and tap and pull out with screw
• Use a 2mm grinder disk and cut a small horizontal groove in it and tease it out with a flat head screwdriver.
• Use a file on one side to make it a little flat then use pliers to pull it down
• Remove the Allen and take a all and stick it in the Allen hole and push it down.
• You have to place a cable from point A on sect 3 of the drill and rewire cable 2 from sec1 into sec2 point of B and that will make it pull out.  some pliers like this and try to get a grip of it

Xhorse engineer solution:

Pull out with a plier. If it is scratched or broken, replace that new one.

NOTE: Always clean your keys before reading them and you don’t have this issue. You have the same probe for over a year now.

Xhorse Condor II Cannot Cut KW1 SC1 Household Key?

 We have a customer complaint the xhorse condor ii key cutting machine won’t cut an sc1 or kw1 residential keys.

SC1 and KW1 is the 95% of the US market in residential, and a significant portion of commercial. Xhorse M4 clamp for the Condor XC Mini, Condor Mini Plus, Condor II, Dolphin XP005 and Dolphin II key cutting machines is used for cutting Single/Double Sided & Crucifix Residential Keys.

M4 clamp easily cuts and decodes SC1 and KW1 keyways.

NOTE:

Old Condor Mini, Condor Mini Plus, Dolphin XP005 and XP005L will not cut residential keys by code. You must have the original key you intend to copy.

The new Condor II has improved and supports part of residential keys cutting by code.



Suggestions:

1. You may select the wrong menu, follow the guide here

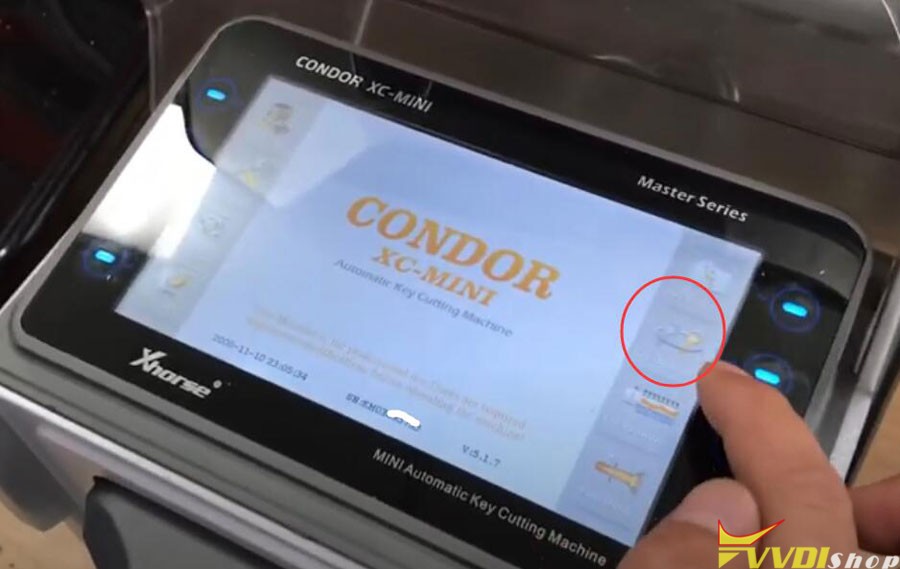

Select Universal Key Duplication- Standard Single-Sided- Shoulder Align and M4 Clamp

Decode original key

cut new key

How to decode and cut KW1 and SC1 Household Keys with Xhorse Dolphin?





Condor shares the same procedure.

Select Key Duplication- Standard Single-Sided- M4 Clamp

Then decode the original key

Cut new key

2). If cannot find KW1 or SC1 on the menu above, try manual cutting

Search and check xhorse condor ii user manual for more information.



3).  1.5mm cutter has more success rate for keys than the 2.5mm cutter.

75% success rate for keys using 2.5 mm cutter. 1.5 mm improve chances.

http://blog.vvdishop.com/xhorse-condord-wont-cut-sc1-or-kw1-solution/

Will Xhorse Dolphin XP007 Cut Ford Tibbe Keys?

 I have just purchased the xhorse Dolphin xp-007 manual cutting machine. Does the dolphin xp007 do tibbe keys if so does it come with clamp?  I’m looking for help on how to fit and cut Ford Tibbe keys, I can’t find a video on YouTube?

Solution:

The dolphin xp007 machine does not cut tibbe keys.

If you read descriptions that it has clamp to cut tibbe key, that’s incorrect.

Xhorse M3 clamp is made to cut Jaguar and Ford tibbe key blades. It is compatible with automatic key cutting machine Xhorse Condor and Dolphin XP005/XP005L only.

Reference:

How to Cut Ford Tibbe All Keys Lost with Condor Dolphin XP-005
