Xhorse Dolphin XP005 Cut VW HU162T-9 All Keys Lost

 Here we’ll show how to decode and cut VW MQB HU162T-9 door lock by Xhorse VVDI Key Tool Plus Pad + Dolphin XP005 key cutting machine. Since all keys were lost, it’s not enough to simply use only one LISHI tool for decoding. At this time, we can use Key Tool Plus to help calculate the missing bittings.



• Calculate Missing Bittings

Turn on Dolphin XP005 to connect with VVDI Key Tool Plus.

Cut key >> vehicle database >> Volkswagen >> All key blank >> HU162T >> All key lost >> Door -> Ignition >> Sided bitting calculate



Follow the reference table to decode bittings:

Decode side bitting with LISHI: 243

Decode front bitting with LISHI: 253323

Press “Calculate” to obtain the missing bittings.

Now all bittings including A/B/C side were all calculated.

Press “Complete”.



• Cut Key

1. Cut the side A of the key.

A Side >> Start cutting

It tells to tip key align 2^nd position on M2-B clamp.

Press “Cut”.

Dolphin XP005 will start cutting… wait until 100%.

Cutting key completed.

2. Cut the B side of the key.

B Side >> Start cutting

It tells to tip align 2^nd position on M2-D clamp.

Press “Cut”.

Wait Dolphin XP005 to cut until completed.



3. Cut the C side of the key.

C Side >> Start cutting

It tells to tip align 2^nd position on M2-D clamp.

Press “Cut”.

Cutting key completed.



Test the new key, it can turn the door lock.

Successfully done.

www.vvdishop.com

Xhorse Dolphin XP005 “Key Center Offset is too Large” Solution

 Here comes a similar problem:

I have an issue with my Xhorse dolphin XP005 that message comes up when I try to cut regular edge cut keys and I can’t figure it out.

Any keys I try cutting same message I get on my phone key center offset is too large.

I updated the firmware through the computer and adjusted the machine.

Solution:

As far as the issue, we need a little bit of a story as to why the error popped up. Make sure you’re on in the correct line.

• First of all, keep firmware up-to-date. Update firmware via upgrade kit.  For the update, you must use a PC.
• The most common problem is the Height Level Adjustment. Be sure that under the cut setting that you’re not set to M5 when you have only the M1/M2.
• Make sure there are no metal shavings on the probe or the cutter.
• If you’re only doing one cut for progression, select only that cut to cut.
• And on another note, for all edge cut keys it is highly suggested to use 1.5mm cutter for the highest accuracy.

If did all the above and error still occurs, contact your dealer with detailed information.

www.vvdishop.com

Cut 2019 Nissan Petrol NSN14 All Keys Lost by Xhorse Dolphin II

 Today I have a 2018-2019 Nissan Petrol key lock, and I’m going to cut a NSN14 key with Xhorse Dolphin XP005L Key Cutting Machine for the door. All keys were lost, so I should remove the lock from the side door to get its bitting codes.

Enter into key cutting interface:

Vehicle database >> Nissan >> All key blank >> NSN14 >> OK

As you can see, there are only 8 pins on the lock.

Input the bitting codes: 124223323, 124223323

Install a key blank on M5 clamp, tip align 4th position.

Press “Cut key >> Cut”.

Dolphin II will start cutting the key automatically…



Wait until processing finished.

Take out the new key for a try.

It can smoothly rotate the lock.



Successfully done.

Follow us for more Xhorse Key Cutting Machine updates.

www.vvdishop.com

How to Solve Xhorse Condor II Breaks Cutter and Screen Dark?

 Problem:

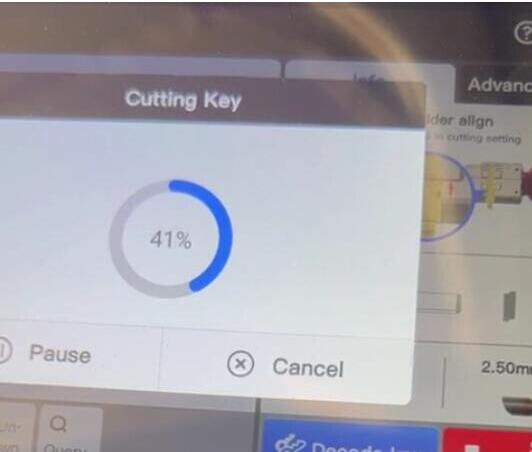

One customer gave feedback that Xhorse Condor XC MINI Plus II screen turned dark during operation. And He has broken lots of cutters when cutting, When it stops then movement on cutter stops while it moves it breaks cutter and have to change the cutter.

Possible Reasons:

1.Hard key blank and incorrect cutter setting (broken cutter)

2.Damaged driver board (dark screen)





Solution:

1.Set “Spindle Speed” as “High”, and set “Movement Speed” as “Low”.

2.Replace driver board.

Xhorse Dolphin II Cut Ducati Multistrada 1200 Motor Key

 How to: cut, copy and cloning Ducati multistrada 1200 year 2014 4D motorcycle key with xhorse combo.



Device used:

Xhorse key reader

Xhorse Dolphin XP005L Dolphin II

VVDI Key Tool plus (or key tool max/key tool max pro)



How this Xhorse combo works, making a Ducati key?



Decode key bitting with key reader

Cut key with dolphin 2

Image attached:

After cut key, start cloning.

Go to Transponder cloning function. Identify key chip type: ID40

Then clone transponder key with key tool plus.

www.vvdishop.com

How to Solve Xhorse Dolphin II Time Changed?

 Problem:

My xhorse dolphin xp005l key cutting machine time changed to 2016 year and 00:00 hour. Tried reset time in system configuration, still the same. Firmware and database version are up to date.

Any suggestion?

Solution:

Remove the touch screen case, replace the button cell battery.

Be careful with this cable when disassembling, the speaker is on the back shell, don’t break it when disassembling.





Here is the tip to remove shell of dolphin ii. You don’t need to remove all screws. Just remove screws on the screen.
