Xhorse Condor XC-003: Unlock Precision with 4-Side Clamp

 Tired of juggling different clamps and fixtures for different keys? The Xhorse Condor XC-003 Key Cutting Machine revolutionizes the process with its groundbreaking 4-Side Clamp System. This isn’t just another feature – it’s the core of why the Condor XC-003 delivers unmatched versatility and ease of use.

This smart design is your key to versatility. The clamp has four clearly labeled sides: A, B, C, and D. It’s built to handle a huge range of keys effortlessly.



Getting a perfect duplicate is simple:

• Left clamp holds the original key.
• Right clamp secures the key blank.
• The golden rule? Simply set both clamps to the same lettered side (A, B, C, or D).



That’s it. No guesswork. No complex adjustments. Just fast, accurate, and reliable key cutting every time.

The Condor XC-003 delivers exactly what you need:

1. Precision for flawless cuts.
2. Versatility for countless key types.
3. Simplicity that anyone can master.



Stop struggling with outdated methods. Choose the Condor XC-003 Key Cutting Machine – your all-in-one solution for professional results.



Upgrade your toolkit. Experience the 4-side clamp difference.

www.vvdishop.com

Tips to Cut PSA HU83 Key with Xhorse Dolphin XP005

 Problem:

When I tried to cut a Citroen Jumpy key with a HU83 blade in my Xhorse Dolphin XP005, I had this problem. It fit properly in the door lock, but not in the ignition cylinder. Afterwards, I looked at the detail in the attached photo. Could this be the reason why the key didn’t fit properly?

Solution:

The end of the key likely isn’t actually cut properly. If you held the original and new key up together they would be slightly different at the tips/last bitting. Use universal duplication to cut HU83 with extra bitting.
Other people with the same issue. So as long as the machine is calibrated right, it decoded it properly, and the key actually was HU83 and not VA2, then it will just be that same bug, it’s nothing you’ve done wrong apart from maybe not comparing the keys after you cut them.



We’ve experienced the same problem, and the issue lies not with the cut, but with the key not passing dust lid you need to file tip of the key narrow to pass it. Just done the same hu83 for 308 today, file tip a bit and it will work.

Xhorse CONDOR XC-TWINS Avoid Probe Breaking

 Have you ever worried about damaging your Key Cutting Machine‘s probe while decoding or cutting tricky keys?If so, you’re not alone. Many traditional key cutting machines rely on conductive probes that are prone to breaking – especially when working with difficult or non-standard keys. That’s where the Xhorse CONDOR XC-TWINS stands out.

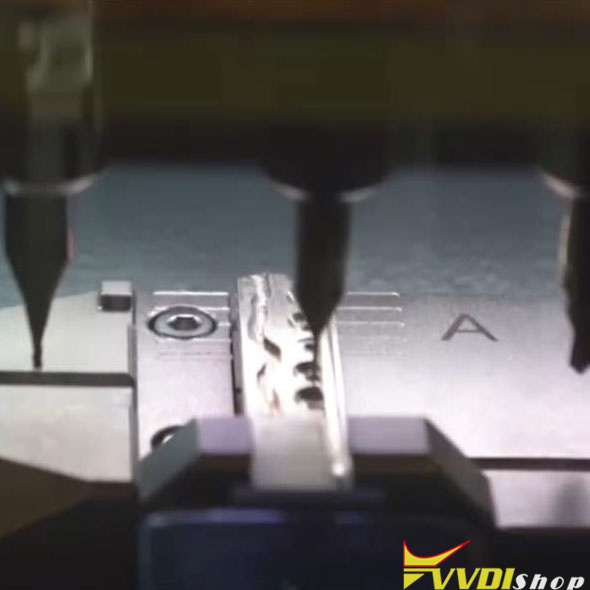

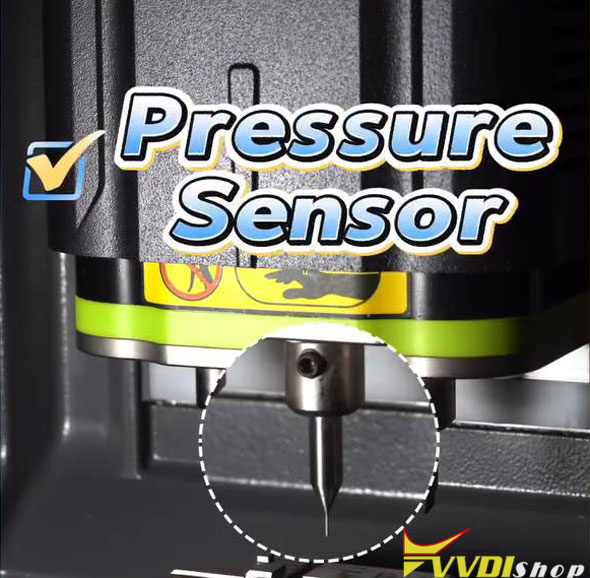

Unlike machines such as the Dolphin series, which use conductive probes, the CONDOR XC-TWINS comes with a built-in pressure sensor on the probe side. This smart feature detects resistance in real-time and adjusts accordingly, effectively preventing probe breakage during operation.

What Does This Mean in Practice?

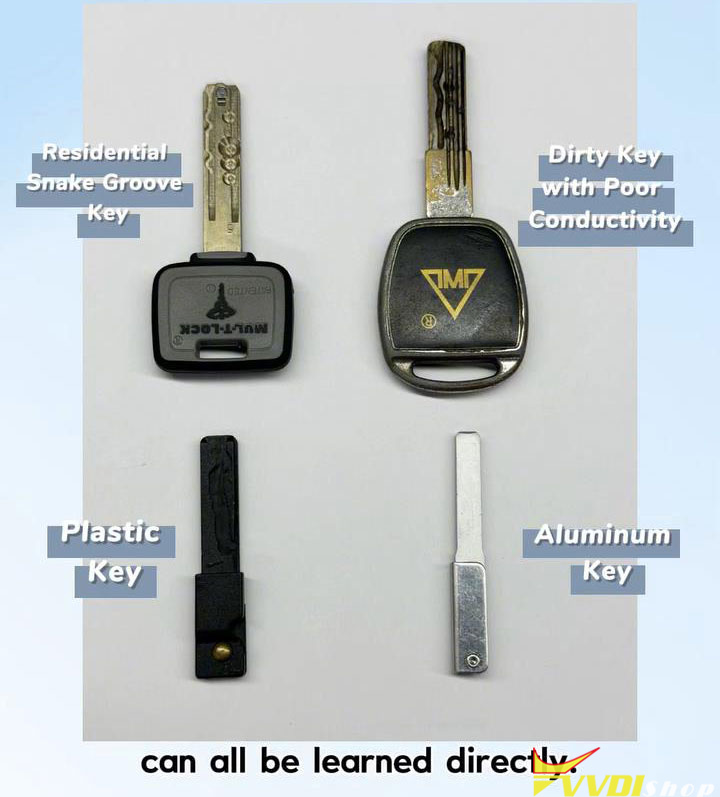

Thanks to this advanced sensor technology, the CONDOR XC-TWINS can handle a wide variety of keys safely and accurately, including:

1. Plastic keys
2. Aluminum keys
3. Residential snake groove keys with narrow grooves
4. Dirty or poorly conductive keys



All of these can be learned directly by the machine – no extra adjustments or special tools needed.

Benefits at a Glance:

• Durability: No more broken probes or costly replacements.
• Versatility: Works with materials and key types that other machines struggle with.

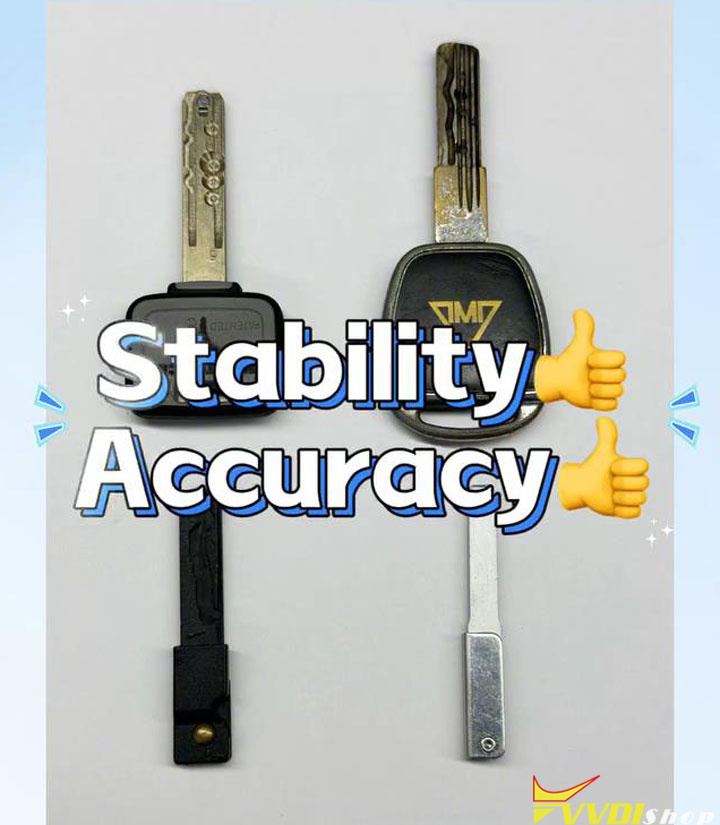

• Reliability: Enhanced stability and accuracy for consistent, professional results.

Whether you’re a locksmith, security professional, or key cutter, the CONDOR XC-TWINS offers a safer, smarter, and more efficient way to decode and duplicate keys – without the downtime or frustration of broken probes.



Upgrade to amachine that works as intelligently as you do.
Choose CONDOR XC-TWINS.



www.vvdishop.com

How to Solve Xhorse Dolphin XP007 Cannot Adjust Clamp?

 Problem:

The clamp that comes standard on the Xhorse Dolphin XP007 doesn’t work when you try to make micro-adjustments to the screws above the laterality numbers, such as 1 and 2, and the depth numbers 3 and 4. It doesn’t make the micro-adjustments, leaving the key copies defective. It’s impossible to get them adjusted.

Solution:

1. Install two identical probes

2. Install the same blank HON66

3. Adjust the left and right 1 and 2. You need to loosen both 1 and 2 first

4. If the indicator is not turn on, tighten the top screw on that side

Then try again.

Xhorse Dolphin II Version Unchanged After Update via App?

 Problem:

I’ve updated the Xhorse Dolphin XP005L firmware via Xhorse app, but the version remains unchanged in the device after the upgrade. Any solution?

Solution:

Open the bottom cover of the Dolphin II, check the green connector (image below), disconnect it, and proceed with the upgrade again.

Once the upgrade is complete, reconnect the connector.

Xhorse Condor XC-TWINS and Condor II Comparison

 What is the difference between 2025 new Xhorse Condor XC-TWINS and Condor XC-Mini Plus II (Condor II) key cutting machine?

Here comes the comparison:

Item	Xhorse Condor II	Xhorse Condor XC-TWINS
Database	large key database, support car, motorcycle and household keys.	more key database, support car, motorcycle and household keys.
Touch screen	7-inch angle- adjustable capacitive touch screen. 1280*720	7-inch angle- adjustable capacitive touch screen. 1280*720
System	Android	Android
Processor	8 core processor	8 core processor
WiFi	Yes	Yes
Bluetooth	Yes	Yes
Built-in battery	No	No
Net weight	19kg	21kg
Gross weight	24kg	26kg
Power	200W	150W
Motor Rotation speed	10000rpm	9000rpm
Protective shield	Yes	Yes
LED indicator	Yes	Yes
Household key cutting	Yes	Yes, much more types
Offline operation	Yes	Yes
Manipulation	Standalone	Standalone
Key blank carving	Yes	Yes
All keys lost	Yes	Yes
Key 3D preview	Yes	Yes
Customized key data	Yes	Yes
Brand-New Pressure Sensor Tech		Yes
AI Optical Recognition		Yes
Newly Double Cutter Design		Yes
Optional key Recognition	Yes (works with key reader)	Yes (works with key reader)
Clamp	M5 clamp in default,Clamp M1, M2, M3, M4 optional	M3, M5L and M6 clamps in default,Clamp M4 optional
Cutters	1.5mm, 2.0mm and 2.5mm milling cutters	1.5mm, 2.0mm and 2.5mm milling cutters, extra 1.0mm milling cutter, 90 degree cutter, internal dimple cutter, external dimple cutter and optional 0.9mm milling cutter.
Update	System, app, software, database, firmware update within machine, without upgrade kit on PC	System, app, software, database, firmware update within machine, without upgrade kit on PC
Warranty	1 year	1 year

What’s new in Xhorse Condor XC-TWINS key cutting machine?



1.Newly Double Cutter Design

Supports cutting various keys (especially residential keys) without frequent cutter changes.

2.AI Optical Recognition

Equipped with a camera that automatically identifies key types and the valid position of the key, supports adjusting key blank sizes.

3.Brand-New Pressure Sensor Tech

Equipped with a built-in pressure sensor at the probe side, which helps avoid probe breaking.
Effortlessly identifies and cuts metal, plastic, and aluminum keys.

4. Supports more household/residential key types

5. Supports new clamps

Comes with M3, M5L and M6 clamp in default. Option M4 clamp.

with improved M5L clamp.

Longer handle.

M6 clamp

With M6 clamp to cut more key types.

Double-sided dimple key

Buyang dimple key

Single-side dimple key

6.Milling cutter.

Both Condor II and XC-TWINS supports 1.5mm, 2.0mm and 2.5mm milling cutters.
XC-TWINS also comes with a 1.0mm milling cutter, a 90 degree cutter, an internal dimple cutter, an external dimple cutter and an optional 0.9mm milling cutter.



How to Cut New Honda Emergency Key with Xhorse Dolphin II?

 How to duplicate the new Honda emergency keys with the Xhorse Dolphin XP005L with M5 Clamp?



Here are the tips to cut New Style Honda Emergency key cut on the Xhorse Dolphin II or Condor II?

Select 2021+ Civic and then profile HONDA. Or newer MDX and profile ACURA.
The two sides of the key are cut differently. Take a very careful look at the tip of the key, one side is wider than the other.
A axis should have you with the key-ring connector facing up into the air. Decode A axis and then cut A axis.
Then switch machine to B Axis. Decode customer key with key ring connector facing down to the floor, then cut new key B axis.

Honda has introduced a new keyway for its 2021 and newer smart keys. These emergency keys are thinner, double-sided, and made of steel in their OEM form. However, for easier cutting, brass keys can be used as an alternative. In this guide, we’ll walk through the process of cutting one of these keys using the Xhorse Dolphin 2 key-cutting machine.



Key Features of the New Honda Emergency Key

Double-Sided Design: The key has an “A” side and a “B” side, each with distinct cuts.

Thin Profile: The key is noticeably thinner than previous models.

Material: OEM keys are steel, but brass keys are easier to cut and work well for duplicates.



Step-by-Step Cutting Process
1. Identifying the Key Sides

Before cutting, it’s crucial to identify the “A” and “B” sides of the key:

A Side: Look for a small slope at the tip of the key when held in a specific orientation.

B Side: When flipped over, the slope will appear in the opposite direction.

2. Setting Up the Xhorse Dolphin 2

Navigate to the key selection menu on the Dolphin 2. The new Honda key is labeled as “SY” in the machine (note that this naming may vary).

Enter the cut codes obtained from decoding the lock. In this example, the cuts for the “A” side were 3 5 1 3 1.

3. Cutting the “A” Side

Secure the key in the machine’s vice with the “A” side facing up.

Select Line 3 as the reference point for clamping.

Initiate the cutting process and allow the machine to complete the cuts.

4. Cutting the “B” Side

Flip the key over and secure it again with the “B” side facing up.

On the machine’s screen, switch from the “A Side” to the “B Side” option.

Enter the cut codes for the “B” side (in this case, 3 5 4).

Proceed with cutting the “B” side.

5. Finishing and Testing

Remove any brass flakes or debris from the key after cutting.

Test the key in the lock to ensure it operates smoothly. The key should only insert one way and turn without issues.



Tips for Success

Double-Check Orientation: Always verify the “A” and “B” sides before cutting to avoid errors.

Use Brass for Practice: If you’re new to cutting these keys, brass blanks are more forgiving than steel.





Conclusion

Cutting the new Honda emergency key on the Xhorse Dolphin 2 is straightforward once you understand the double-sided design and proper orientation. By following these steps and paying attention to detail, you can create a functional duplicate key with ease.
