How to Cut Dimple Keys by Xhorse Condor XC-002 Pro?

 The upgraded version Xhorse Condor XC-002 Pro manual key cutting will duplicate dimple, double sided, single sided, 4 track external, 2 track external, 4 track internal, channel track keys. Here we will show how to cut a dimple key with condor xc-002 pro.

1. Insert the internal dimple probe and cutters

2. Insert the original key and the blank key using a shim

3. Rotate the knob to standard mode

4. Calibration. Follow the direction of the light until the middle light turns green

Make sure the clamp is in the corresponding position.

Turn on the cutter switch.

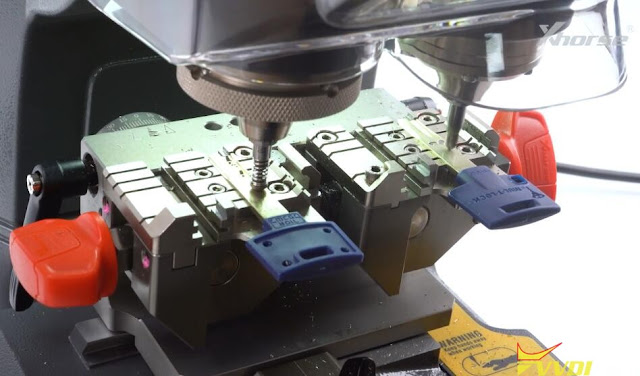

5. Duplicate the key
Press down the main handle to duplicate the key.

Turn off the switch after finishing one side cutting.
Clip the key and continue to cut the other side.

After finishing cutting the other side, turn off the switch and clean up.

6. Insert the dimple probe and cutter (external) to Xhorse Condor XC 002 pro.

Replace the internal dimple probe and cutter with external ones.

7. Switch the konb to dimple mode

8. Insert the keys
9. Finish the calibration.
Clamp the keys and finish calibration.

10. Duplicate the key
Turn on the cutter switch to cut key.
After finishing one side, turn off the switch.

Clip the key and continue to cut the other side.

After finishing cutting the other side, turn off the switch and clean up.

Now we have a working dimple key.

www.vvdishop.com

Decode 2024 Ford new HU198T Key with Xhorse Dolphin XP005

 We have a customer who successfully decoded and cut 2022 Ford Maverick HU198T key blank with Xhorse condor ii under Escape HU198T.

Here is another way to decode and cut new HU198T key blank if you don’t know decode under Escape HU198T.

It is a 2024 Ford Mavericks. It has new HU198T key blank.

Let’s control the Xhorse Dolphin XP005 key cutting machine by the VVDI Key Tool Plus.



Go to Cut key-> Vehicle database
If selected by model Ford->Maverick, no 2024 HU198T is available. So we cannot go by car.

We scroll down All key blank. There are 4 HU198Ts. The difference is the depth.

All 4 of them say 10bits,  this one if we go into it we can see down here it has five depths.
Another one has four depths.

We are not sure about which to choose.  What happens if you decode it with the wrong key blank.

For example, let’s decode under 4 depths.
What it decodes is wrong.

If we go find bitting, it is not going to come up with anything.

Then we go to the 5 depths, the bitting the same.
But try find bitting, still no data.

Let’s select 1st one that also 5 depths.
Still got the same bitting.
If we go to find bitting, we got the key code this time.

That’s correct.

We can cut key by Dolphin XP005 with the key code.



What is the difference between the 2 five depths?

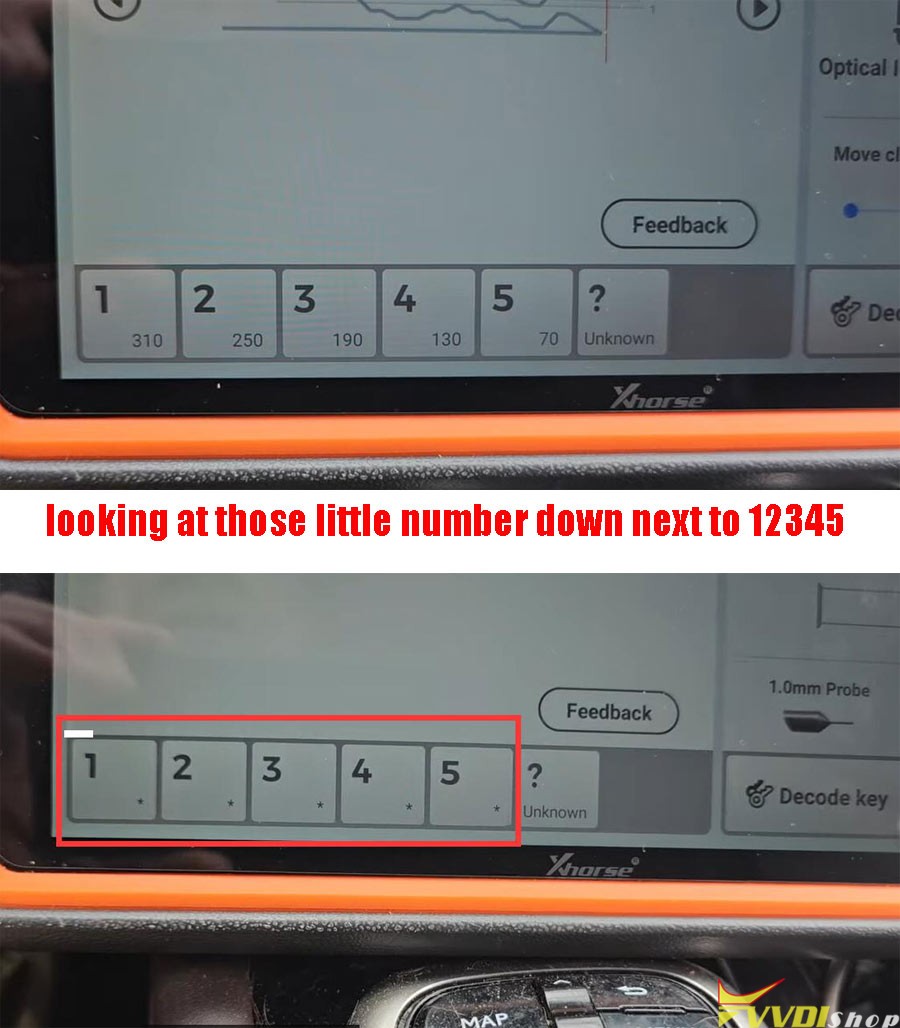

Looking at those little numbers down next to 12345.

One has little number and one does not. That’s the difference.

If you want to be safe, find one you know if you are decoding an existing key and you don’t have the vantage of having a code.
Do a little trial and error and if you find one that spits out a code when you hit the find bitting button, it is pretty safe to say that you got the right one.



www.vvdishop.com

Decode HU162T 9-Cuts Key by Xhorse Dolphin XP005L

 Today I’m gonna show how to decode a HU162T 9-cuts key with Xhorse Dolphin II machine. The process may be the same with the Dolphin I XP005, you just use a phone instead of tablet screen.



Procedure

Cut by bitting >> Search HU162T >> HU162T-9

Dolphin XP005L tells to use M5 clamp side B, tip align 3rd align.

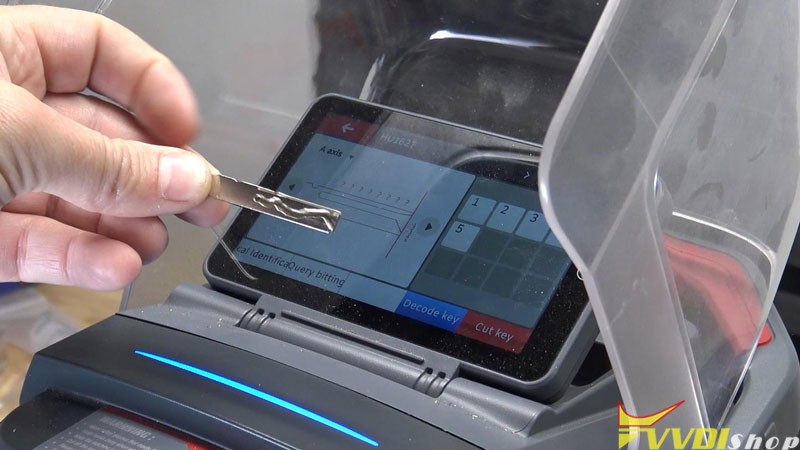

One thing to notice on the screen: there’s a little notch on one side.

If you hold the key up to the screen, we got the notch on top and we’re going to rotate it. This is how it needs to go in the M5 clamp. If you do it the other way, the machine will give an error. It’s not going to work.

Install the key blank onto M5 clamp B side.

Press “Decode key”.

Dolphin II machine will go through the process of decoding the key.

Just wait for it…

Decode key complete.



As we can see, the A axis have been calculated: 342455321

Let’s see B axis, it’s already filled in 324, which is correct.

Then if we hit C axis, it’s already filled in 231.



So you don’t have to decode all 3 sides, you just got to do the side with notch facing the correct direction. Xhorse Dolphin will decode the entire key bitting codes.

www.vvdishop.com

Xhorse Dolphin XP005 Error Code 49 Solution

 Problem:

When using Xhorse Dolphin XP005 universal key duplication function, it displayed error code 49. How to fix it?

Solution:

Just as it said, do Height level adjustment and clamp calibration before cutting.



How to do height level adjustment?

•Click Device Info at the bottom
•then click “Height Level Adjustment”
•Next you will want to READ the onscreen directions and follow them exactly.
